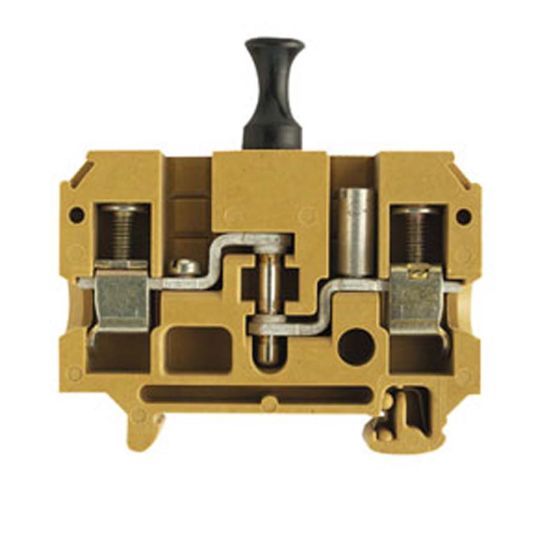

Weidmuller Rail Test-Disconnect Terminal Block SAKC 10/35 2 STB4 KRG 10mm Screw Connection Direct Mount KrG Medium Ylw

$Weidmuller\Weidmuller_1404620000.jpg$

Description

Test Disconnect Terminal Block, 10 mm, 500 Volt, 27 Amp, 12 mm Wire Strip Length, 1.2-2.4 Nm Tightening Torque, 2 Connection Points, 1 Potential, 1 Level, Screw Terminal, Snap In Mounting, KrG Insulation, Yellow, -60 to 130 deg C, UL94 V0 Flammability, 65 mm Height, 12 mm Width, 48.5 mm Depth

Key Specifications

Barcode (EAN-13)	4008190113445
SKU	WEI1404620000
Brand	Weidmuller
Product Type	Disconnect Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	1404620000
Colour	Yellow
Current Rating	27 Amp
Depth	48.5 mm
Flammability	UL94 V0
Height	65 mm
Insulation Material	KrG
Mounting Method	Snap In
Number of Levels	1
Number of Connection Points	2
Number of Potentials	1
Temperature	-60 to 130 deg C
Terminal Type	Screw
Tightening Torque	1.2-2.4 Nm
Width	12 mm
Voltage Rating	500 Volt
Wire Strip Length	12 mm
