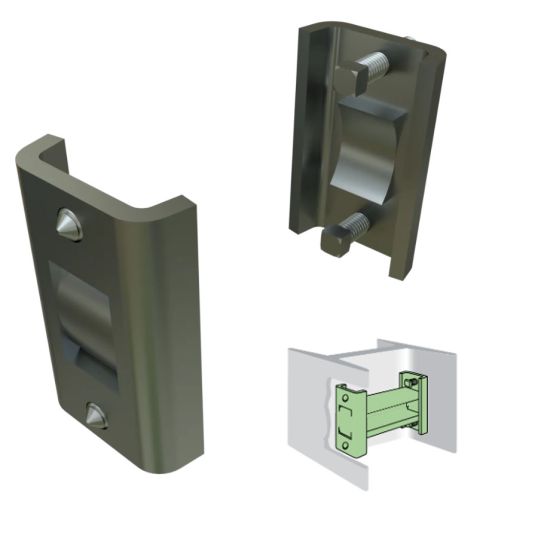

Unistrut Beam Suspension Clamp Steel Hot-Dip Galvanised For P1000 P2000 Strut Channel
Loading...
Description
Beam Suspension Clamp, For Use With P1000 P2000 Strut Channel, 4.45 kN Pullout 3.56 kN Slip at P1000 2.22 kN Pullout 1.33 kN Slip at P2000, Steel, Hot Dip Galvanised, 3 Safety Factor
Key Specifications
| Barcode (EAN-13) |
932148052206
|
|---|---|
| SKU |
UNSP3087H
|
| Brand |
Unistrut
|
| Product Type |
Clamps & Brackets
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 30101800 |
| UOM | EA |
| Vendor Product | 4001169 |
| Finish | Hot Dip Galvanised |
| For Use With | P1000 P2000 Strut Channel |
| Load Rating | 4.45 kN Pullout 3.56 kN Slip at P1000 - 2.22 kN Pullout 1.33 kN Slip at P2000 |
| Please Note | 3 Safety Factor |
| Material | Steel |
