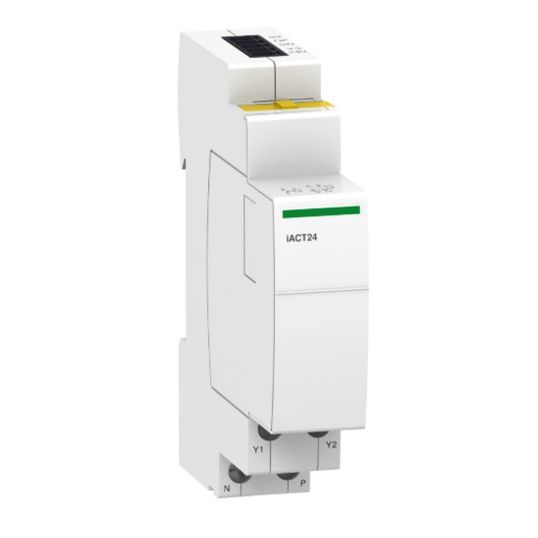

Schneider Auxiliary Contactor 24VDC 1NO with Ti24 PLC Interface for Acti9 iACT

Name: Auxiliary Contactor 24VDC 1NO for Acti9 iACT
SKU: SHNA9C15924
Availability: InStock

$Schneider\Schneider_SHNA9C15924.jpg$

Description

Auxiliary Contactator, Control Circuit Voltage: 230 Volt AC, 24 Volt DC (Falling Edge, Rising Edge), Contact Configuration: 1NO, DIN Rail Mount, Terminal: Tunnel Type Terminal, Spring-Loaded, IP20/IP40, White, -25 to 60 deg C, 81 mm Height, 18 mm Width, 68 mm Depth, For Use With: Acti 9 Supervision and Switchboard Control, with Ti24 PLC Interface

Key Specifications

Barcode (EAN-13)	3606480430619
SKU	SHNA9C15924
Brand	Schneider
Product Type	Contactor Auxiliaries

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	A9C15924
Contact Configuration	1 Normally Opened
For Use With	Acti 9 Supervision and Switchboard Control
Depth	68 mm
Height	81 mm
Please Note	with Ti24 PLC Interface
Temperature	-25 to 60 deg C
Terminal Connection	Tunnel Type Terminal Spring-Loaded
Width	18 mm
