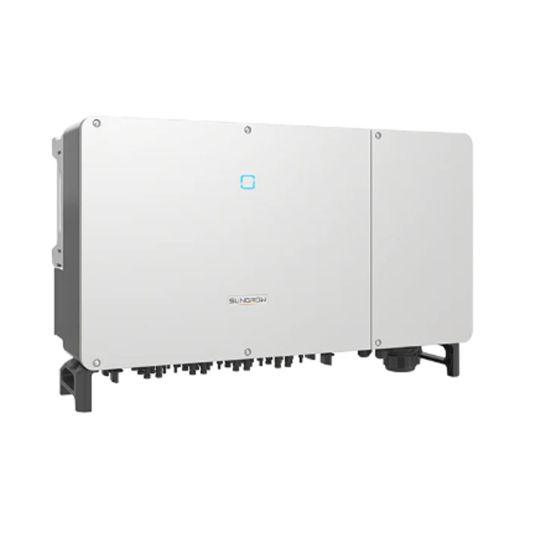

Sungrow Premium String Inverter with WiFi DC Cover DC Switch 110 kVA 9 MPPT 3 PH 400 Volt 3/N/PE 158.8 Amp IP66

$Sungrow\Sungrow_SG-110CX.jpg$

Description

String Inverter with Wi-Fi___33 DC Cover DC Switch/3 Phase/1100 Volt DC Input/585 Volt DC Nominal/550-850 Volt DC MPPT Voltage Range/26 Amp DC Max. Input/9 MPPTs/110 kVA AC Output/400 Volt/3/N/PE/50/60 Hz/158.8 Amp AC Output/>0.99 Power Factor/98.7% Efficiency/98.5% European Weighted Efficiency/4000 mtr Max. Altitude/RS485/Wi-Fi/Ethernet/LED Display/Smart Forced Air Cooling Cooling/IP66/-30 to 60 deg C/0-100% Relative Humidity/660mm Height/1051mm Width/362.5mm Depth/89 kg

Key Specifications

SKU	SGWSG110CX
Brand	Sungrow
Range Name	Premium
Product Type	Solar Inverter String

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	SG110CX
AC Nominal Voltage	400 Volt
AC Operating Frequency	50/60 Hz
AC Output Power	110 kVA
AC Output Current	158.8 Amp
Communication Port	RS485/Wi-Fi/Ethernet
Cooling Method	Smart Forced Air Cooling
DC Max. Input Current	26 Amp
DC Input Voltage	1100 Volt
DC MPPT Voltage Range	550-850 Volt
DC Nominal Voltage	585 Volt
Depth	362.5 mm
Display Type	LED
Efficiency	98.70%
Height	660 mm
IP Rating	IP66
European Weighted Efficiency	98.50%
Max. Operating Altitude	4000 mtr
Number of MPPTs	9
Operating Temperature	-30 to 60 deg C
Phase	3 Phase
Power Factor	>0.99
Relative Humidity	0-100%
Width	1051 mm
