Matchmaster N' Plug 50 Ohm For LL/LMR195/RG58 50 Ohm Crimp

chevron-left
loader
Loading...

Description

chevron-down

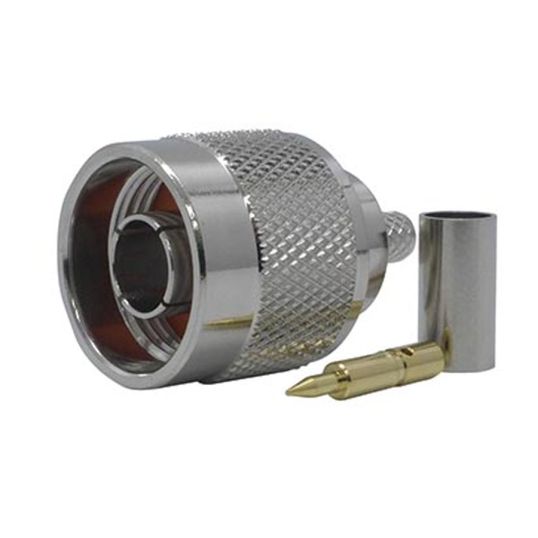

The N058 N-type plug is a commercial quality crimp centre, crimp outer style. It is a quality Nickel plated product with Gold finish on the centre pin contact & also the soldering surface (inside of centre pin). Unlike silver-plated connectors, it has a high resistance to tarnishing. The shield is crimped.

Key Specifications

chevron-down
SKU
MAT56MM-N058
Brand
Matchmaster

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • N058 N-type connector for use with 56MM-E58 series cable
  • Impedance: 50 Ohm nominal
  • The shield screw thread connection conforms to the proper 5/8*-24UNEF-2B standard imperial thread
  • Brass body with nickel plating with phosphor bronze contact pin with gold plating
Standard Pack Size 1
UNSPSC Class 43221700
UOM EA
Vendor Product 56MM-N058
For Use With LL/LMR195/RG58 50 Ohm Crimp
Impedance 50 Ohm
Product Type simple
