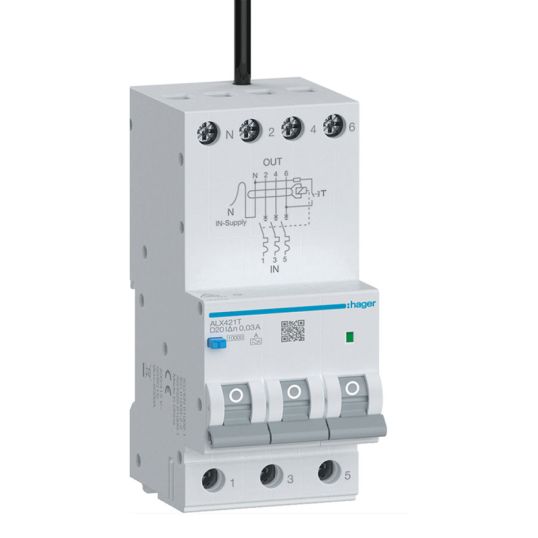

Hager Electronic RCBO Type A 400-415 VAC 20 Amp 10 kA 3 Pole + N 30 mA IP20 3 Module 54 mm

$Hager\Hager_ALX421T.JPG$

Description

Electronic Residual Current Breaker with Overcurrent (RCBO) Type A, 400-415 Volt AC, 20 Amp, 50/60 Hz, 10 kA Interrupt, 30 mA Trip, D Curve, 3 Pole + N, 3 Module 54 mm, 1-16 sq-mm/1-25 sq-mm Terminal, Screw, IP20, -5 to 70 deg C, 84 mm Height, 54 mm Width, 70 mm Depth

Key Specifications

Barcode (EAN-13)	3250610015858
SKU	HAGALX421T
Brand	Hager
Product Type	Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	ALX421T
Depth	70 mm
Connection Type	Screw
Current	20 Amp
Frequency	50/60 Hz
Height	84 mm
IP Rating	IP20
Interrupt Capacity	10 kA
Modules	3 Module 54 mm
Number Of Poles	3 Pole
Temperature	-5 to 70 deg C
Terminal Connection	1-16 sq-mm/1-25 sq-mm
Trip Characteristic	D Curve
Voltage	400-415 Volt AC
Trip Sensitivity	30 mA
Width	54 mm
